STAGE2 Performance 4 clutch Plate + Billet Steel Cap Upgrade Set For BMW 188mm LSD 強化型 4 摩擦片升級套件 (50%鎖定率)

Capture 2020-08-02 06.28.34
s-l1600-1003 s-l1600-1006 s-l1600-8 s-l1600-1005 s-l1600-1221

For all who wish to upgrade their Limited slip differential to the highest performance, we prepared special 4 Clutch kit with reinforced billet differential cap.

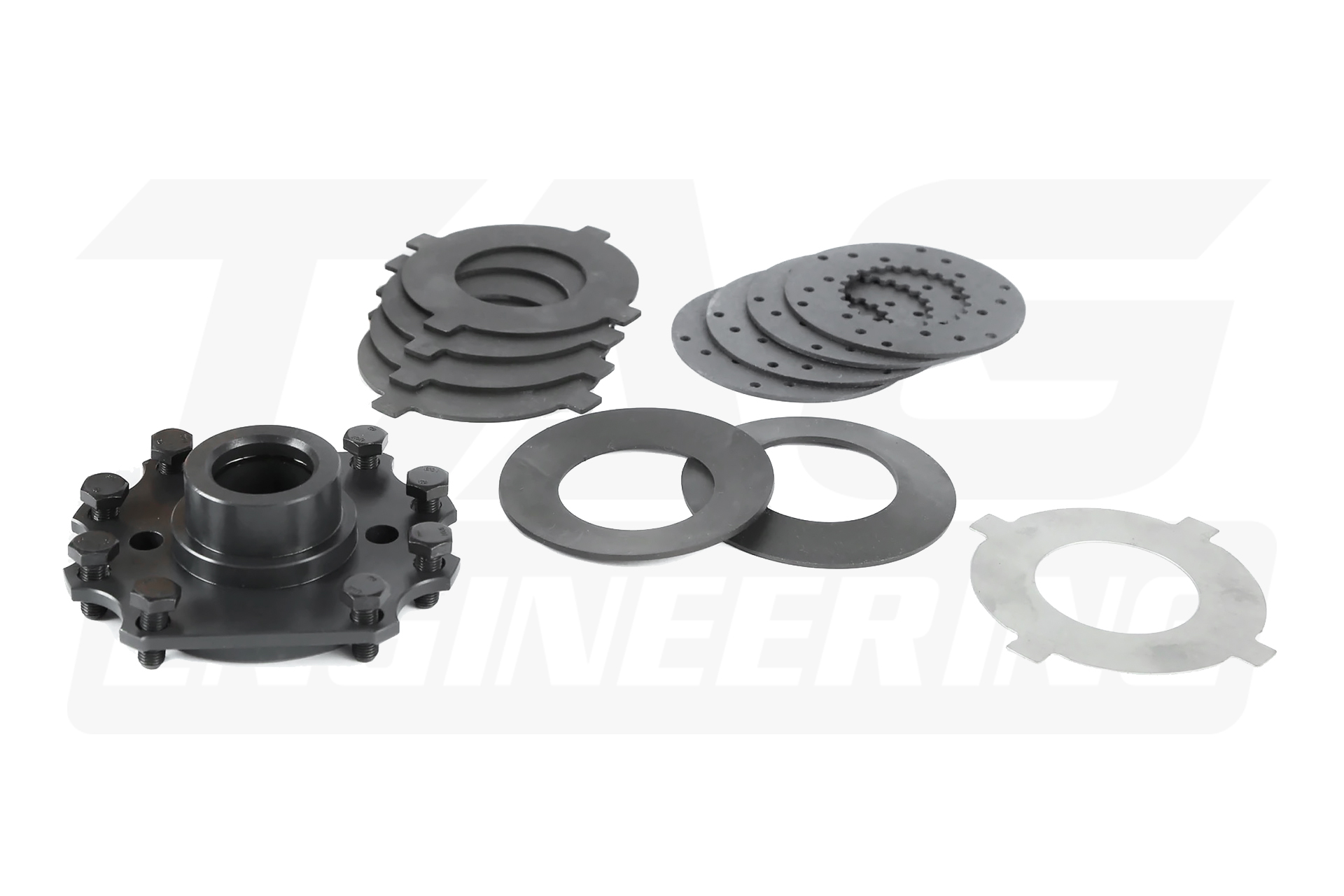

Kit includes:

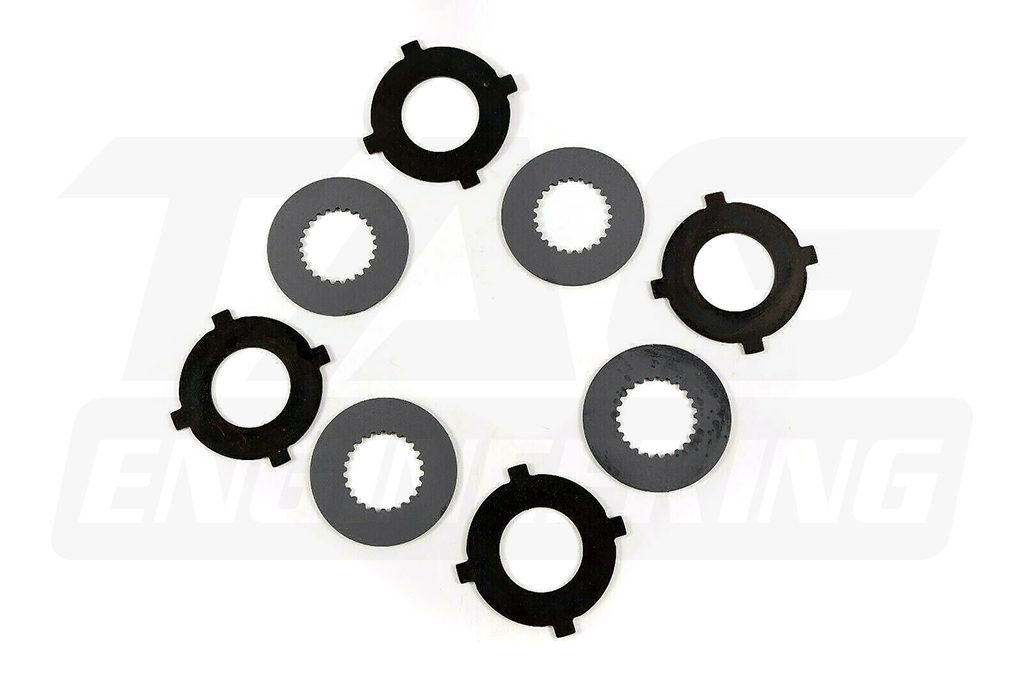

  • 4x Clutch/Friction disc
  • 4x Dog ear steel plates
  • 1x Custom reinforced cap
  • 2x Preload shims
  • 8x Reinforced screw

By adding 4 clutches to your differential you will improve its performance. You will gain:

  1. 100% more durability
  2. 100% more strength
  3. 100% more heat resistance
  4. 100% more longevity
  5. up to 50% LOCK
  6. VISCOUS effect (For VENTED version)

When you are adding 4 clutch kit, reinforced steel cap is required because grinding of original one is very risky and unsafe method. When you grind original cap to fit 4th clutch pack you remove all hardened metal layer so they became weak and probably will break.

Reinforced cap can be purchased separately, just send us inquiry.

  • If you need Spherical (Preload Spring) shims, please check HERE
  • If your oil shim is broken, which is more than often problem, please check HERE
  • If you need Bearing and oil seal set – please check HERE

Our clutches are Molybdenum-Ceramics coated with high grip surface for improved friction coefficient. They can be purchased separately as well, just send us inquiry.

  • If you need set for low gear ratio (2.65 to 3.07) please contact us first!!!

The set is highly recommended for drift and racing setups. It has proven itself in various drift cars in Europe.

Fitment:

  • BMW E30
    • 320is S14
    • 323i M20
    • 324td M21
    • 325e M20
    • 325i M20
    • M3 S14
  • BMW E36
    • 320i M50
    • 323i M52
    • 323i 2.4 M52
    • 323ti M52
    • 325i M50
    • 325is M50
    • 325td M51
    • 325tds M51
    • 328i M52
    • M3 S50
  • BMW E28
    • 518 M10
    • 518i M10
    • 520i M20
    • 524d M21
    • 524td M21
    • 525e M20
    • 525i M30
    • 528e M20
    • 528i M30
    • 533i M30
  • E34
    • 518g M43
    • 518i M40
    • 518i M43
    • 520i M20
    • 520i M50
    • 524td M21
    • 525i M20
    • 525i M50
    • 525td M51
    • 525tds M51
    • 530i M30
    • 535i M30
  • BMW E32
    • 730i M30
    • 730iL M30
    • 735i M30
  • BMW Z3
    • Z3 2.0 M52
    • Z3 2.2i M54
    • Z3 2.5 M52
    • Z3 2.5i M54
    • Z3 2.8 M52
    • Z3 3.0i M54
    • Z3 M3.2 S50
    • Z3 M3.2 S54
    • Z3 M3.2 S52
Share With Friends

Prices Shown Are In New Taiwan Dollars.

If The Order Needs To Be Shipped Outside Of TAIWAN, Please Get An Shipping Quote From The "CONTACT US" Or "[email protected]" First. Prices On Our Website Dosen't Include International Shipping Fee.

All Purchases Are Subjected To Riot Racing Terms Of Service Agreement. Some Products For Race Use ONLY.

關於 LSD 油選用?

MOTUL Gear Competition SAE 75W140

LSD (限滑差速器) 目前主要分為兩大類:摩擦片式以及蟲型齒輪式,摩擦片式 LSD 可以有效的提供傳動輪穩定且優異的性能,他擁有許多蟲型結構 LSD 所無法達到的特性,除了可設置起始 Preload (預載) 外、還可透過改變壓板扭力孔坡道角度來設置鎖定方向以及比例,循序漸進的鎖定特性讓車輛可以平順且穩定的隨著油門深淺來控制驅動輪的穩定性,不依賴車輪接地壓力差來觸發做動是讓這這類結構能全時發揮優異性能,更不會像蟲型齒輪形式的 LSD 會因為單輪失去接地壓力而直接解除鎖定。

除特定用途下(如飄移賽),摩擦片形式的 LSD 為眾多車廠在性能車款以及標準化工廠賽車上所配置的主要 LSD 結構,也是全球眾多比賽廠隊優先選用的 LSD 形式。

然而摩擦片結構的 LSD 需要使用專用油品來控制溫度、壽命以及性能,並且讓摩擦片在超過額定負載下能允許進入漸進式打滑狀態來釋放多餘的壓力,我們了解市面上有各式各樣不同品牌、型號、濃度的摩擦片 LSD 專用油,也許您不知道該如何選擇,所以在多項考核測試後,強烈建議使用來自 MOTUL 的 Gear Competition SAE 75W140 在我們所有販售的 LSD 組件上,他可以有效減少高鎖定率的自然噪音以及提供優異的溫度抑制,並且發揮 LSD 的最佳性能。
