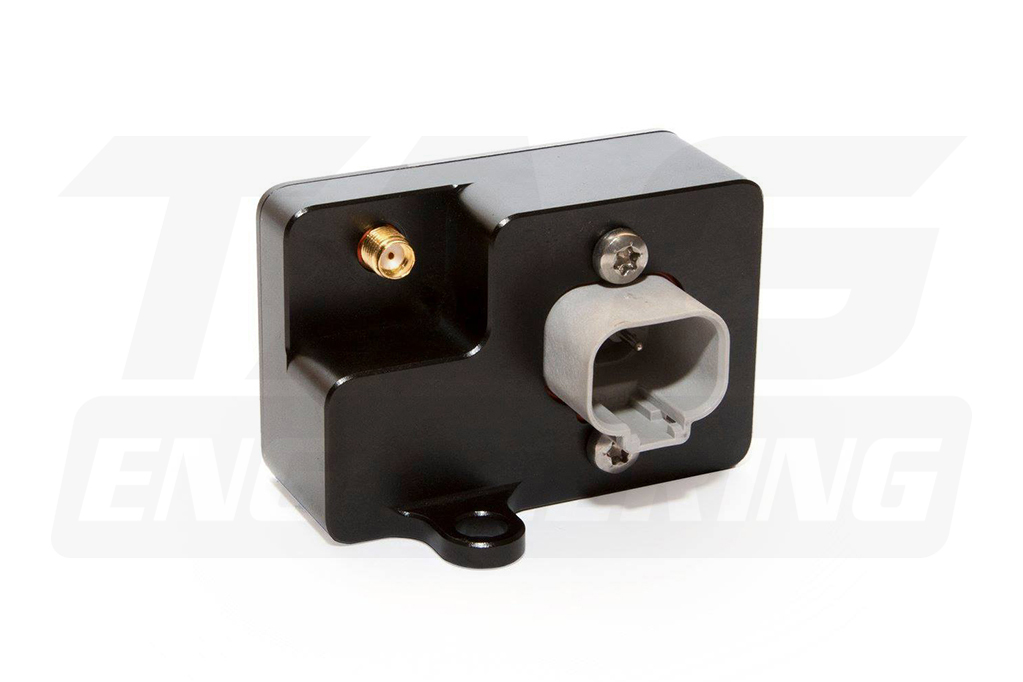

Ecumaster GPS module assures high accuracy position tracking with 20Hz update rate. The module is able to use GPS, Glonass and Galileo satellites using the included external active antenna. Thanks to a built in 3-axis accelerometer and gyroscope, the device can deliver information about speed, position, heading and altitude. All GPS data is transmitted via CAN bus. GPS module is intended to work with the ADU display/logger and allows real time lap timing, predictive timing as well as off-line track maps and data analysis.

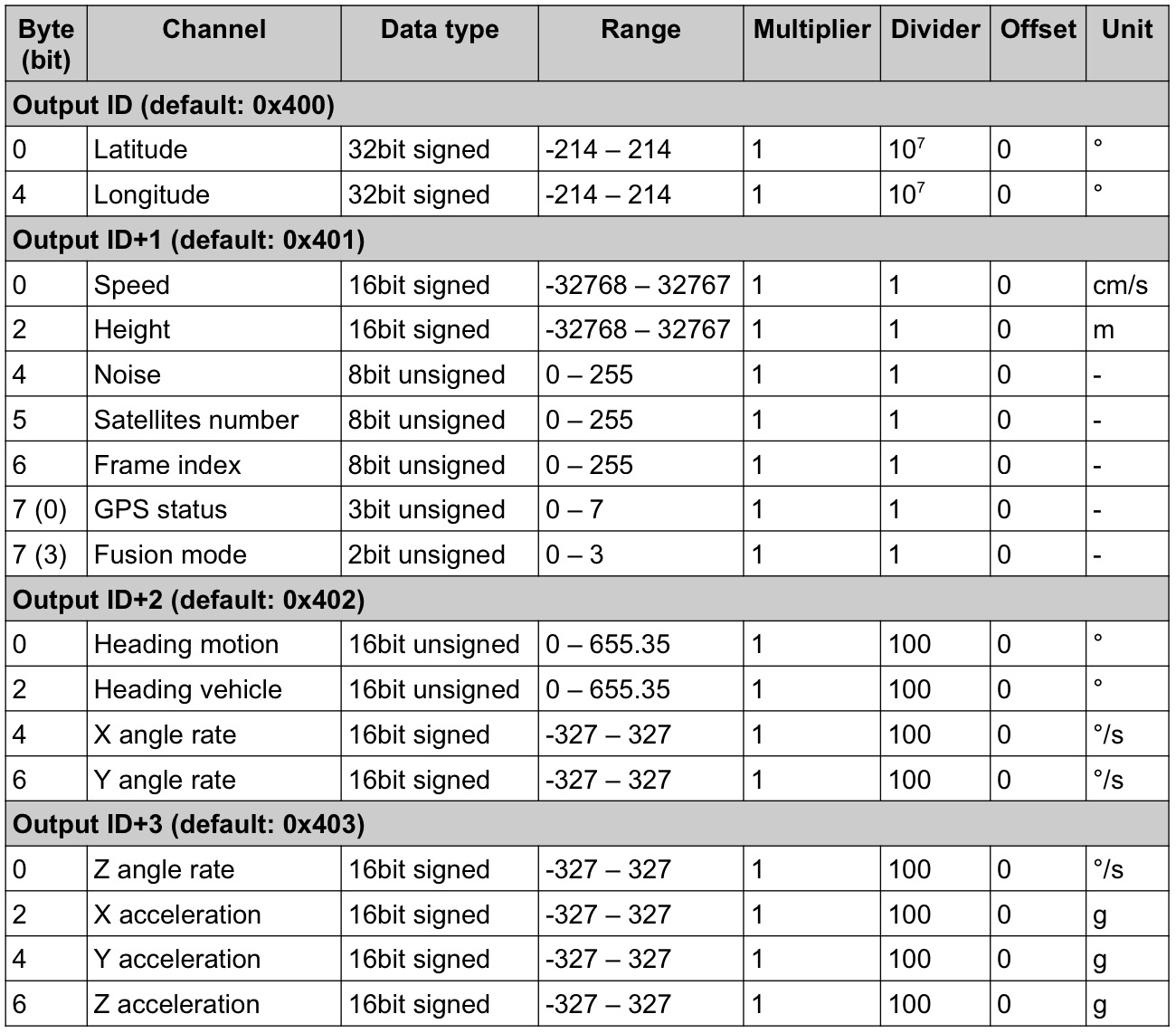

GPS to CAN is a device designed to provide position information over CAN BUS. The module uses a combination of different navigation systems (GPS, GLONASS, BeiDou, Galileo) as well as an internal IMU (Inertial Measurement Unit). Position, acceleration, and yaw information is transmitted at an update rate of 20Hz. Position data can be used to measure lap times, estimate current lap time, draw track maps and analyze vehicle logs with respect to track position.
The GPS to CAN device must be programmed using a CAN interface. The ECUMaster USB to CAN, Kvaser, or Peak PCAN may be used.
What’s in the box?
- GPS to CAN Module
- Vibration isolating mounts
- 4 position Deutsch DT connector with terminals
- GPS Antenna
