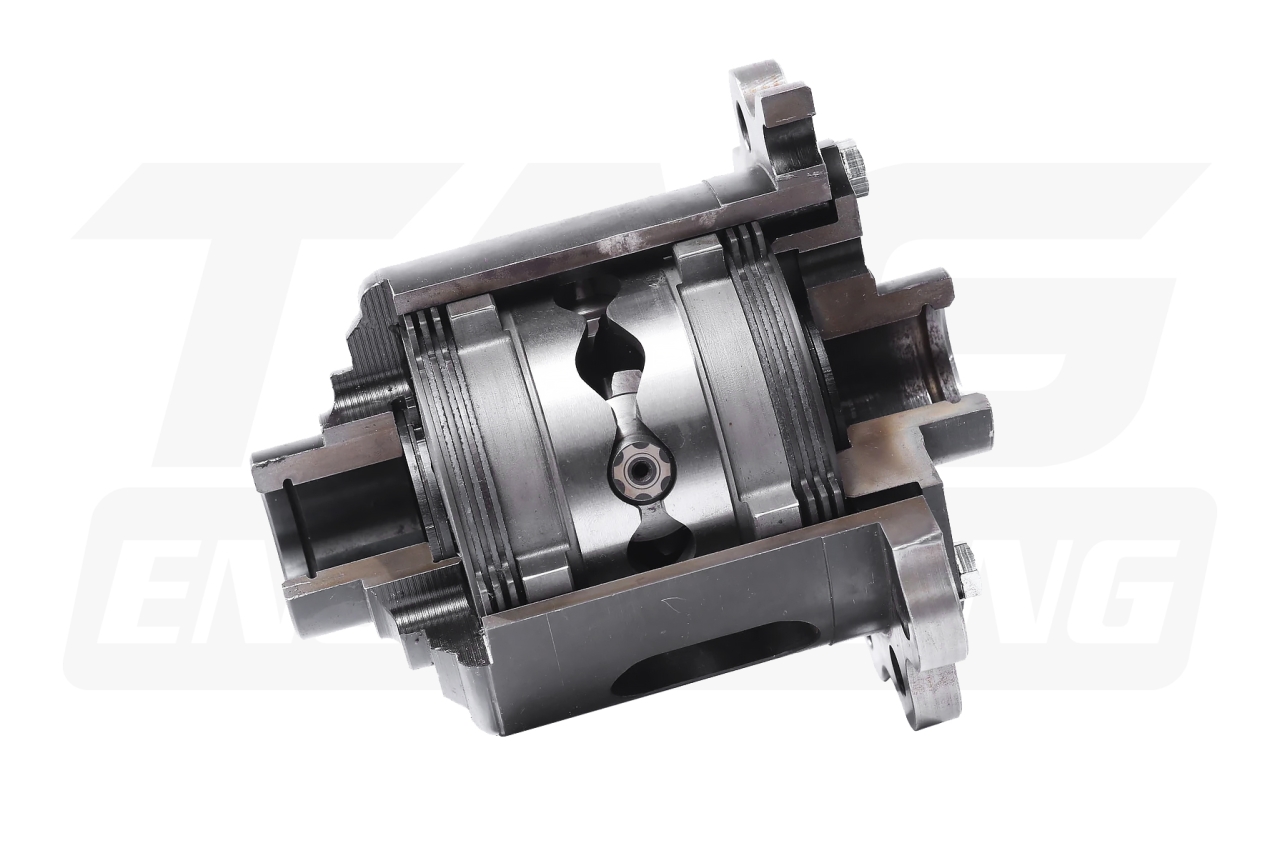

This is the Highest performance Motorsport spec limited slip differential on market!
We call it ALL SOLUTION as it is compatible with ALL racing disciplines – Drift, Rally, Hill climb, Circuit, Time attack. It is great for street usage too. Everything is fully adjustable – Number of active clutches, Initial torque and ramp angles.
Lock can be easily adjusted to 25% – 40% – 60% – 75%, both on 1.5 and 2 way.
The easiest way to adjust lock is to change number of ACTIVE clutches inside the unit.
For example, unit comes set to the maximal number of active clutches as default setup and that is – clutch – disc – clutch – disc …etc.
If you change clutch order to – clutch – clutch – disc – disc …etc. you will decrease number of Active clutches by 50% and lock percentage as well.
There is endless variations and combinations so you can set your unit very precisely to best suit your needs. Please note that you don’t need to honor symmetry on left and right side as all clutches are spinning together due to connection between spider gears.
You can also change Ramp angle setup simply by rotating cross pins to another position. This allows you even more tuning possibility!
The most common differential setups for characteristic applications :
- Drift – 2 way (30°/30° ramp angle) Maximal number of active clutches
- Rally (Gravel) – 1.5 way (30°/60° ramp angle) Maximal number of active clutches
- Circuit (Grip driving) – 1.5 way (50°/65° ramp angle) Maximal number of active clutches
- Street driving – 1.5 way (50°/65° ramp angle) number of active clutches may vary (check diagram on the last picture).
Unit contains :
- 6x Molybdenum-Ceramics clutch plates
- 6x hardcore dog ear steel plates
- 2x spring shims
- Multi variation ramps – 50°/65°, 30°/30°, 30°/60°
- Billet steel housing thermally treated for high durability
Our differential has proven itself in large number of pro-series drift cars and the highest class rally / circuit cars with great success. All our parts are carefully designed to withstand all extreme conditions and they are been tested and used for long time with nothing but positive feedback.
We provide LIFETIME Warranty on clutch plates, so you don’t have to worry about maintenance!
Our company produces the highest quality LSD Friction Plates and Dog Ear Steel Plates on the market. We use the highest quality thermally processed tool steel which differs our product from any others on the market. During the final steps of production, clutch plates are coated with special Molybdenum-Ceramic compound which optimizes the best ratio of friction coefficient and durability, drastically reduces material wear and warping under extreme conditions, providing our Clutch plates the best possible longevity.
